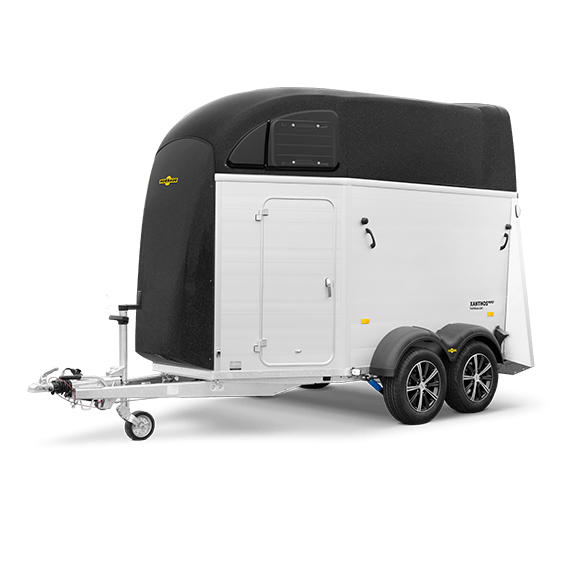

Xanthos AERO
The design star
lightness and ample space in the AERO model
i
- The EquiDrive® chassis, with its hot-dip galvanised longitudinal beam chassis, offers high stability and thus the best possible safety.
- The Xanthos® AERO 2700 is equipped with the EquiDrive® PLUS chassis. This includes an automatic brake adjustment and the wheel shock absorber and has the 100 km / h confirmation (Germany)>/li>
- The Xanthos® AERO 2700 S is equipped with EquiDrive® Plus S with coil spring chassis including wheel shock absorbers and 100 km / h confirmation (Germany)
i
- The AERO-dynamic front provides up to 20% more space in the saddle compartment. The lower air resistance saves you fuel.
- In black metallic or silver as standard; in the complete RAL colour pallete at an additional charge.
i
- Polyester roof with tinted vent windows. The polyester roof is available in many colours at an additonal price; the standard colour ist silver grey.
i
- Lockable saddle compartment with saddle holder, snaffle holder, mirror, net and 20% more volume.
- Also available in Western variant.
- Smooth surfaces in the interior protect the tack during transport.
i
- Side walls made of high-quality aluminium profiles.
i
- 13-pin plug with reversing and fog lights.
i
- AluBiComp floor, 21 mm thick, with rubber bed 8 mm thick, glued and sealed.
i
- Solid, all-round and hot-dip galvanised Frame profile.
i
- Elegant, galvanised rear outrigger with integrated lighting.
i
- Large access door and saddle compartment door, each with 3-point locking
i
Ramp flap with rubber granulate mat (standard equipment).
i
- EquiSpace® space concept. Maximum space for the horses thanks to the sophisticated Humbaur EquiSpace® interior concept.
- The chest and breech bars are divided and padded, adjustable in height and length, and complete with panic unlocking.
i
- The Humbaur creates a pleasant atmosphere in the twilight for horse and human.
i
- The exclusive Windschott (deflector) offers draft-free ventailation and continuous air circulation.
i
- Automatic jockey wheel, centrally mounted.
i
Tyre size suitable for 100km/h.
i
The transport safety system can be opened in a matter of seconds.
The AERO-dynamic front gives the Xanthos© a more elegant appearance, while providing you with three concrete benefits: The lower air resistance decreases wind noise. The trailer has a lower fuel consumption. It increases the storage space in the saddle compartment by approximately 20%. We have also improved the aerodynamics of the new, tinted ventilation window. It has five settings for ventilation to suit your needs. To ensure that the AERO always provides sufficient fresh air without producing a draft, we have equipped it with the tried-and-trusted Humbaur wind deflector. We can also equip the Xanthos© AERO with additional ventilation and a skylight for you on request.
EquiDrive® chassis
AERO-dynamic front
Polyester roof with tinted vent windows
Lockable saddle compartment with saddle holder
Side walls made of high-quality aluminium profiles
13-pin plug with reversing and fog lights
AluBiComp floor
Hot-dip galvanised frame profile
Elegant rear support
Large access door and saddle compartment door
Ramp flap with granulate mat
EquiSpace® space concept
Interior lighting
Openings for light and air in the interior
Automatic jockey wheel
Tyre size suitable for 100 km/h
EquiGuard® – Patented panic release
The AERO front offers improved aerodynamics and more space in the saddle compartment.
The EquiDrive® chassis ensures the highest stability and thus the best possible safety.
The EquiDrive® PLUS chassis with automatic brake adjustment (Only for models from 2700 kg permissible gross weight).
Designed for convenient transport of two horses.
EquiSpace® - our space concept for maximum room for the horses.
Our lockable partition EquiLock® provides absolute safety for your horses even when the tailgate is open.
Large saddle compartment with extra space for horse and rider equipment.
AluBiComp floor, 21 mm thick, with rubber floor, 8 mm thick, glued and sealed.
Choose a colour
- All poly parts
Uni-colours
Design
Images similar. Colour deviations from lacquering and colouring of parts of all kinds are possible and do not constitute a defect.
Technical data
Xanthos AERO
Inner height 2.364 mmTotal height 2.855 mm
Inner length 3.447 mmTotal length 4.592 mm
Inner width 1.714 mmTotal width 2.235 mm
Xanthos AERO Standard equipment
- EquiDrive® chassis with shock absorbers
- Model 7615, Xanthos AERO 2700 with EquiDrive® PLUS chassis and automatic brake adjustment
- Model 7617 Xanthos AERO 2700 S including EquiDrive® PLUS S chassis with coil spring suspension
- Side panels made of double-walled anodised aluminium profiles
- Lockable saddle compartment with saddle carrier, snaffle holder, mirror, stowing net, lighting, shovel and broom
- AERO-dynamical front
- 13-pin plug with fog and reversing light
- Side kick protection
- AluBiComp floor, 21 mm
- 8 mm thick rubber flooring, glued on and sealed
- Sturdy surrounding frame section (hot-dip galvanised)
- Elegant galvanised tail support with integrated lighting
- Entry and service door with 3-point locking mechanism
- Rear ramp with high-grip rubber and sidestop
- Split and padded breast and breeching bars with EquiGuard® panic release, height- and lengthwise adjustable
- EquiLock® lockable partition wall
- New designed tinted and 5-way adjustable vent windows
- Interior lighting and feed-basket bracket mounted
- Exclusive roller wind deflector for draught-free interior ventilation
- Automatic jockey wheel with shunting handle
- GRP roof and front in Silver Metallic
- Tyres designed for 60 mph
Xanthos AERO Models
Permissible gross weight in kg
2400
2700
2700
Load capacity in kg
1545
1841
1791
Body dimensions in mm (LxWxH)
4592 x 2235 x 2875
4592 x 2235 x 2855
4592 x 2235 x 2855
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
3447 x 1714 x 2364
3447 x 1714 x 2364
braked
✓
✓
✓
Load height in mm
445
445
445
Tyre size in inches
15
15
15
Xanthos Aero 2400
Permissible gross weight in kg
2400
braked
Body dimensions in mm (LxWxH)
4592 x 2235 x 2875
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
Load capacity in kg
1545
Load height in mm
445
Xanthos Aero 2700
Permissible gross weight in kg
2700
braked
Body dimensions in mm (LxWxH)
4592 x 2235 x 2855
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
Load capacity in kg
1841
Load height in mm
445
Xanthos Aero 2700 S
Permissible gross weight in kg
2700
braked
Body dimensions in mm (LxWxH)
4592 x 2235 x 2855
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
Load capacity in kg
1791
Load height in mm
445
How many horses can I transport?
Two ponies
You can comfortably transport two ponies in the Xanthos® AERO.
One horse
A single horse can also naturally enjoy the comfort of the Humbaur EquiSpace®.
A pair of horses...
Two fully grown horses can also travel conveniently in the Xanthos® AERO.
Two heavy horses
... also have adequate space in the roomy Xanthos® AERO horse trailer.
A Humbaur is well planned
We have also fulfilled the wishes which you believe nobody can fulfil.
